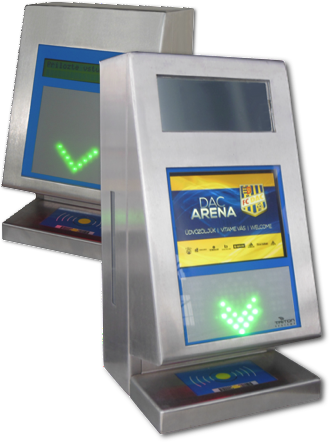

ARENA ENTRY CONTROL TERMINAL M
New model series of sophisticated terminals
for stadium entry control
New model series of sophisticated terminals
for stadium entry control
» Vandal resistant stainless steel cabinet for horizontal or recessed horizontal or vertical installation in interior or exterior
» Uni-directional or bi-directional (one bi-directional terminal)
» Turnstile and adjacent gate control thanks to modular configuration construction of the terminal display panel designed for different identification media and individual user requirements
» One backlit slot for all ISO or ISO-like barcode and QR code tickets
» Frontal RFID reader and barcode scanner installation for wrist identification media reading
» Multidirectional barcode reading without ticket size limitations
» Monochrome display and color monitor for transaction alerts or club logo and animation presentations
» LED pictograms and indications visible also in direct sunlight
» Automatic LED pictogram and color monitor brightness control
Monochrome alphanumeric LCD display 2x20 characters or
Monochrome graphic LCD displej 190x32 dot
Color TFT-LCD monitor VGA 5,7"
RFID reader / writer of Mifare Standard or
RFID reader / writer - Legic technology
RFID reader / writer - other technologies 13.56MHz, NFC
RFID reader / writer - technology 125kHz and 134.2kHz
Three - color LED pictograms in the shape of arrows and crosses or
Five-color LED indication of discount tickets and permanent passes,
indication of a risk person found by the FRS (Face Recognition System)
Automatic LED pictogram and indication brightness control
Acoustic indication of discount tickets
Integrated 64-bit industrial computer control unit
Additional display-control panel for the operator
Additional operator control panel equipped with barcode scanner and RFID reader (for high turnstiles)
Camera for visitor - ticket pairing with FRS preparation
Additional terminal with optional lighting, manual or automatic brightness control
Stainless steel cover protecting the terminal against street vandalism (for high turnstile terminal)
Dimensions: according to terminal type
Weight: cca 5 kg
vandalism resistant abrasive stainless steel, 2 mm thickness
IP44, IP54 for terminals without slots
-10 ° C to +70 ° C (barcode scanner w/o cooling -10 ° C to +50 ° C, FRS camera -10 ° C to +50 ° C)
* Depending on the configuration - more info upon request
13.56 MHz - MIFARE® Standard, LEGIC RF Standard: Legic Prime. 125/134 kHz - ISO 18000-2: Hitag 1. For other technologies, contact the supplier
Ethernet (10/100 Mbps), 8x RS232C, 4x USB 2.0, external I / O (6-12x galvanically isolated inputs, 8-14 OC outputs (500mA, 30V), 1A, 60Vdc))
5V dc / 1 to 4A, 12V dc / 3 to 6A according to configuration
